Actually still working Analog from 80th.

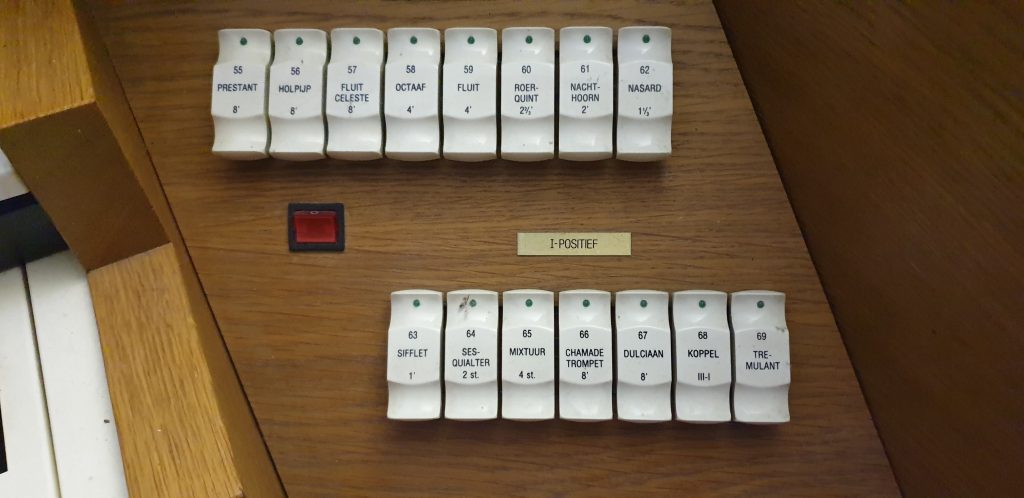

69 – Stops mechanical switch ON/OFF (not push button) 1 contact
+3mm green led to indicate that is on

•

•

•

•

•

•

•

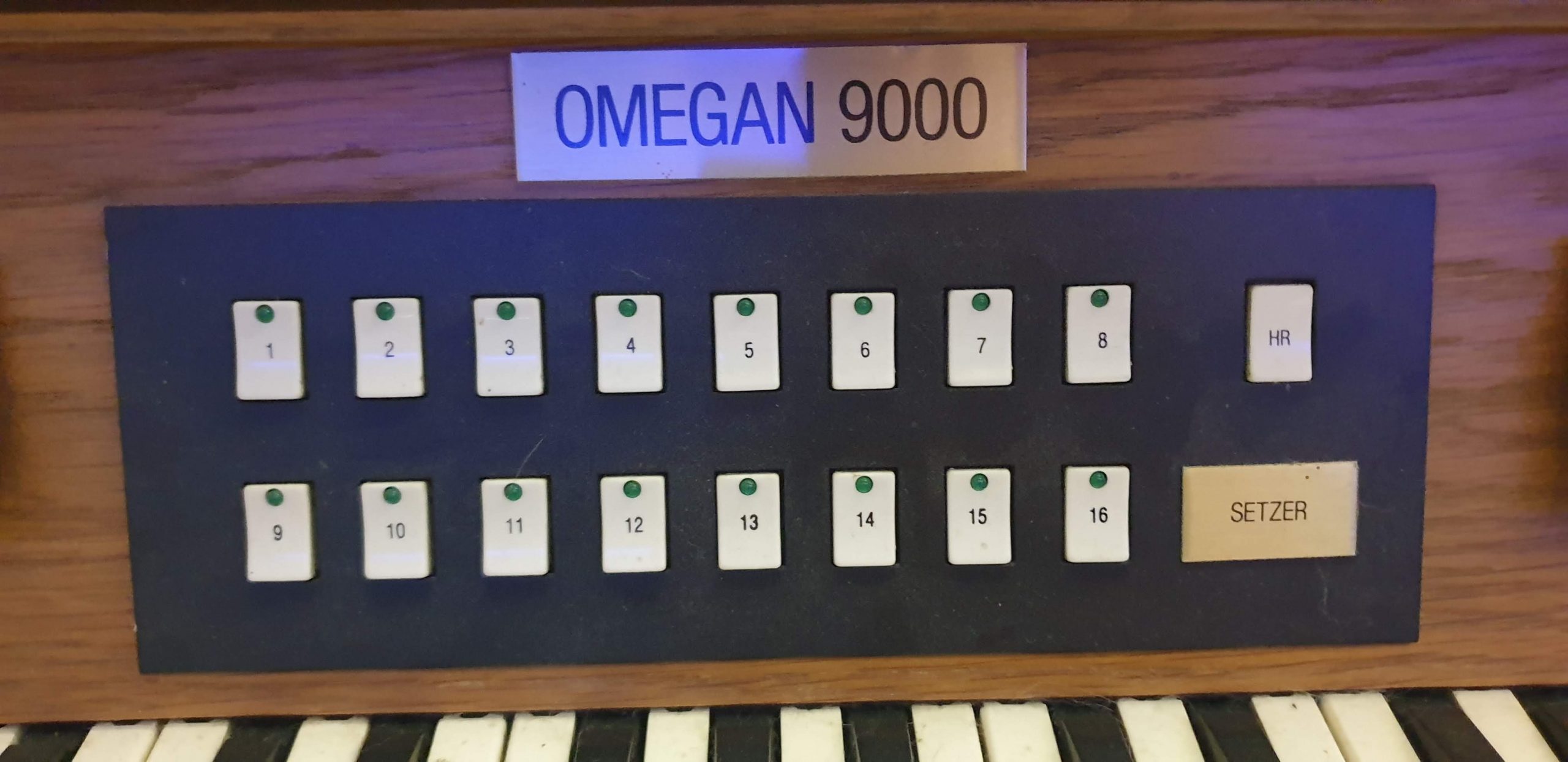

16 preset buttons, +Set

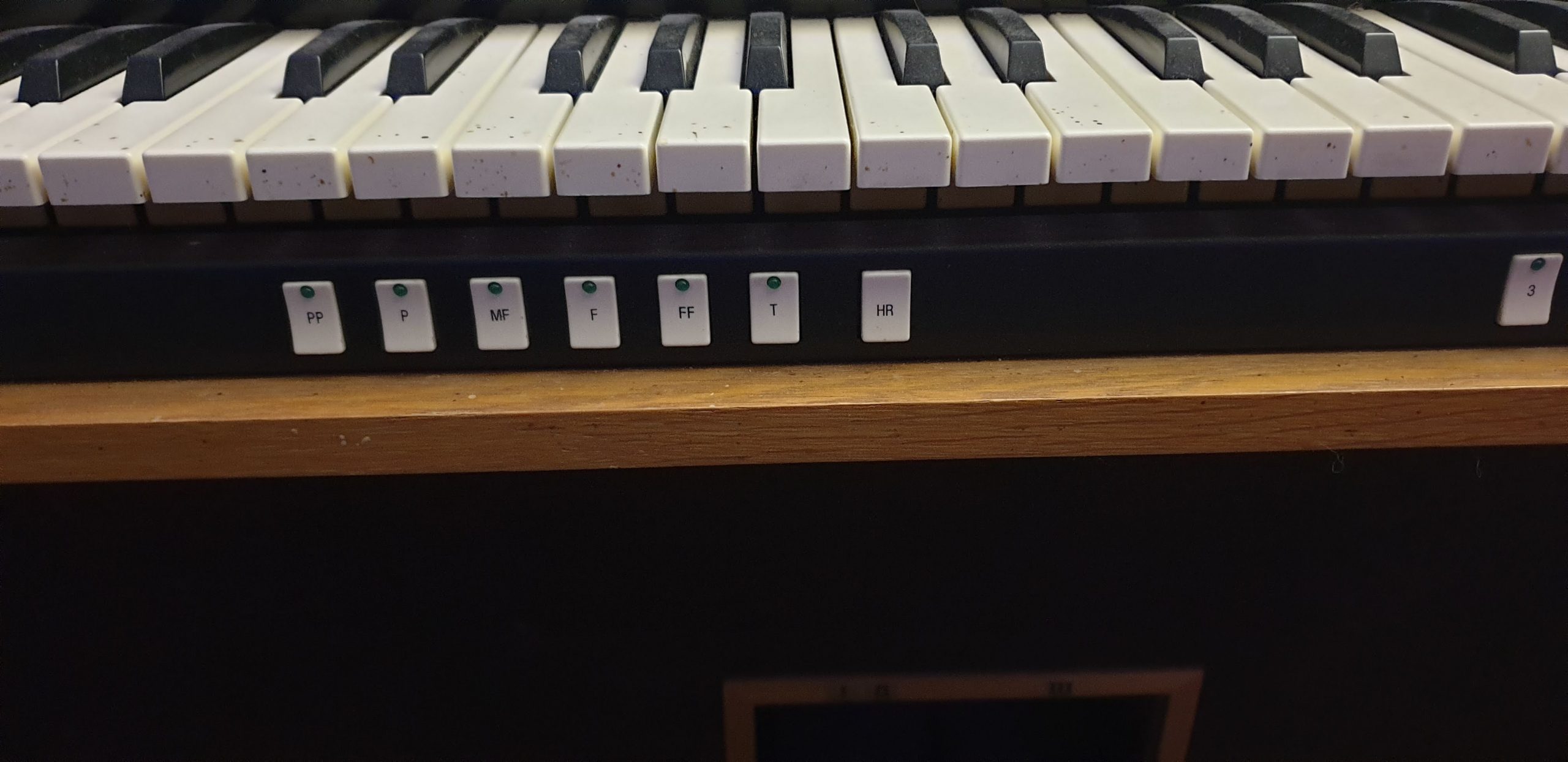

7 thumb – PP, T + Set

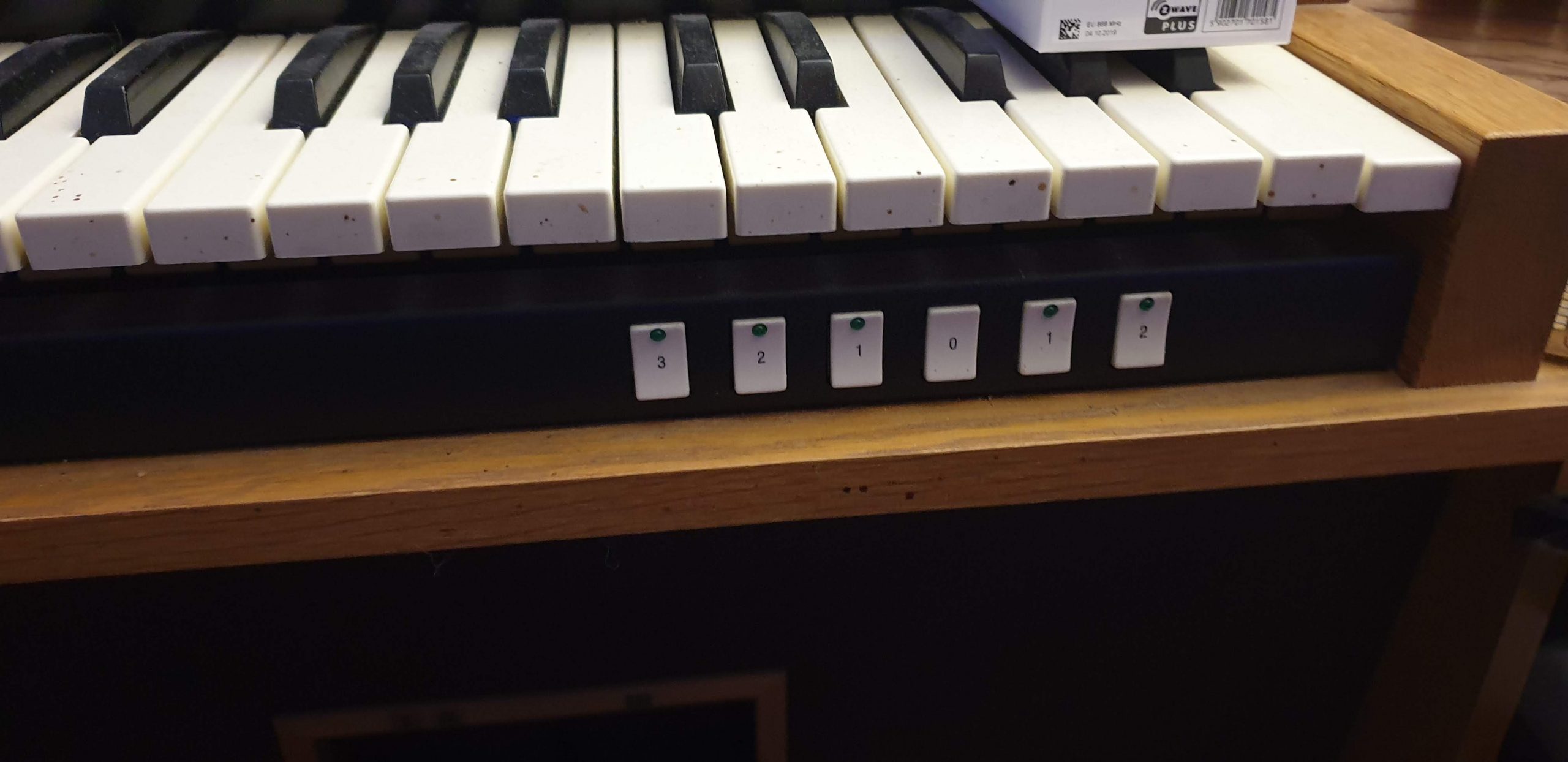

5 thumb – transpose -3, +2

What would you use?

---

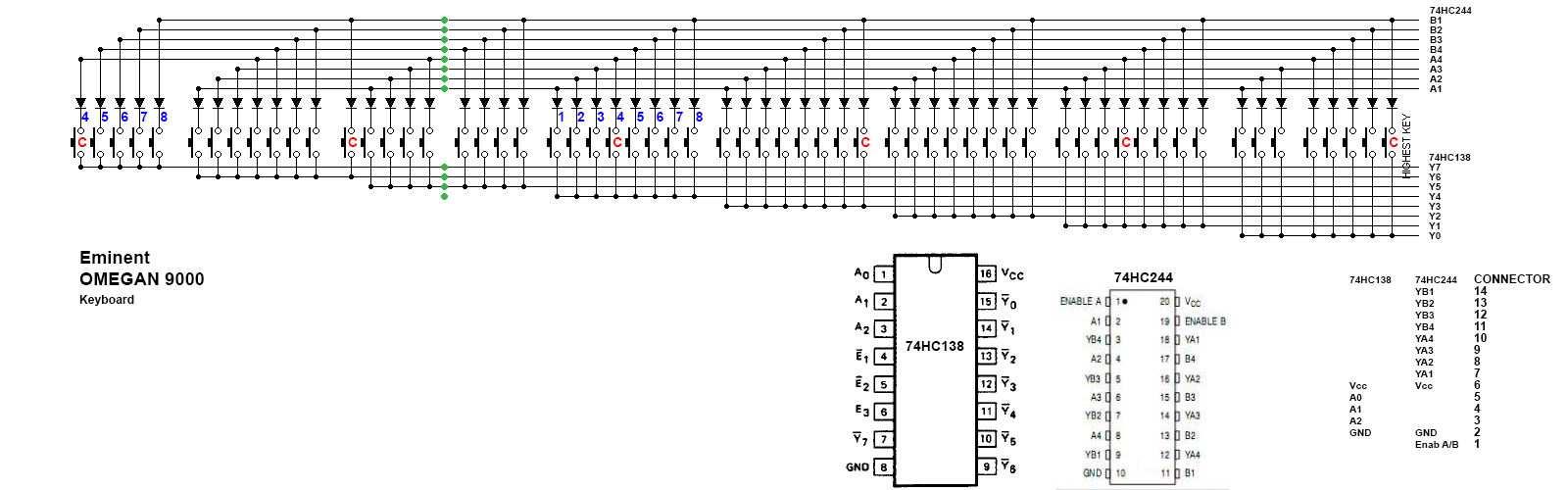

Keyboards

Keyboards are in 8×8 matrix
but instead 61 keys being 1-61 (of 64)
it start (bottom C) on 4-64

---

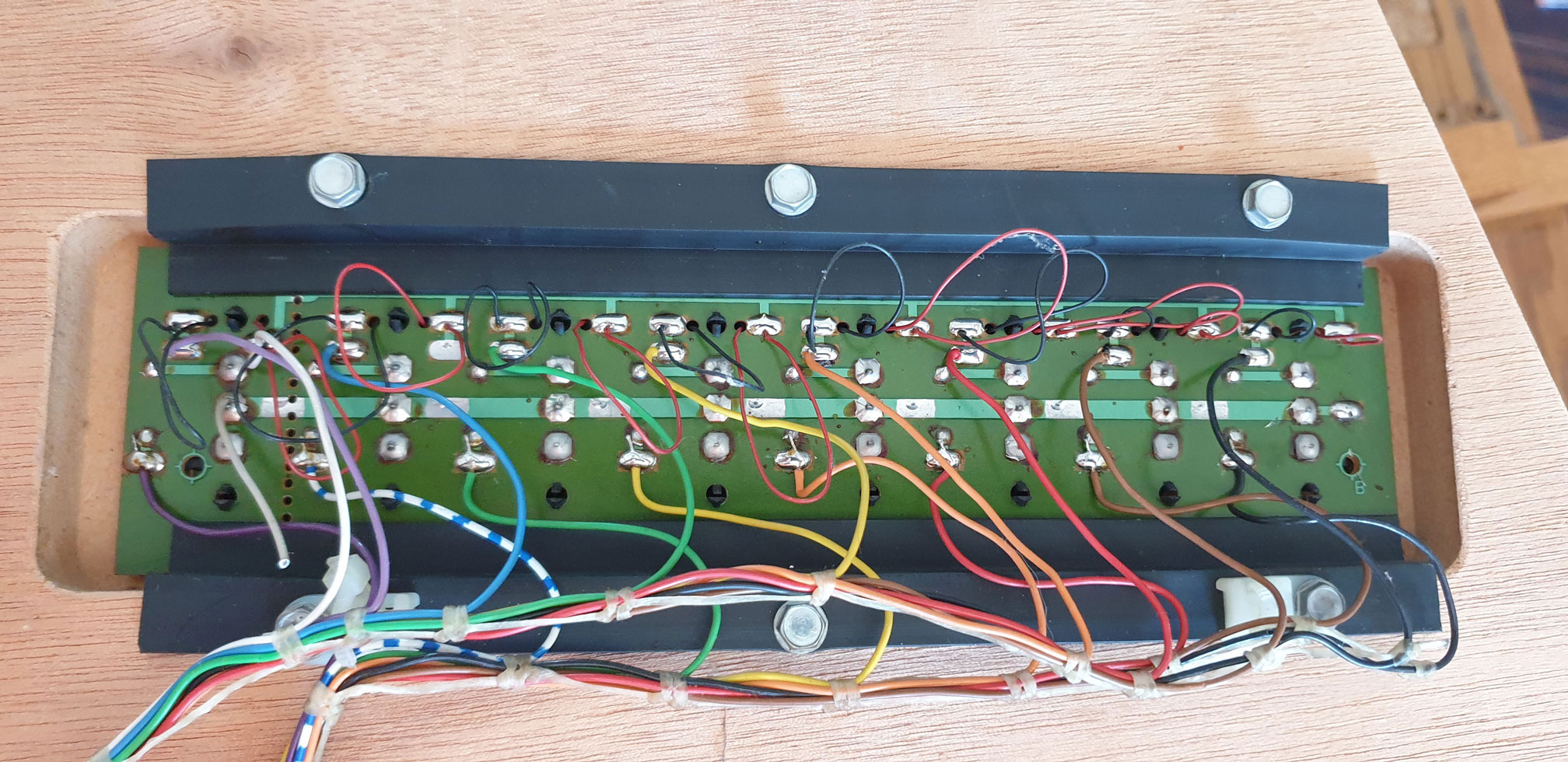

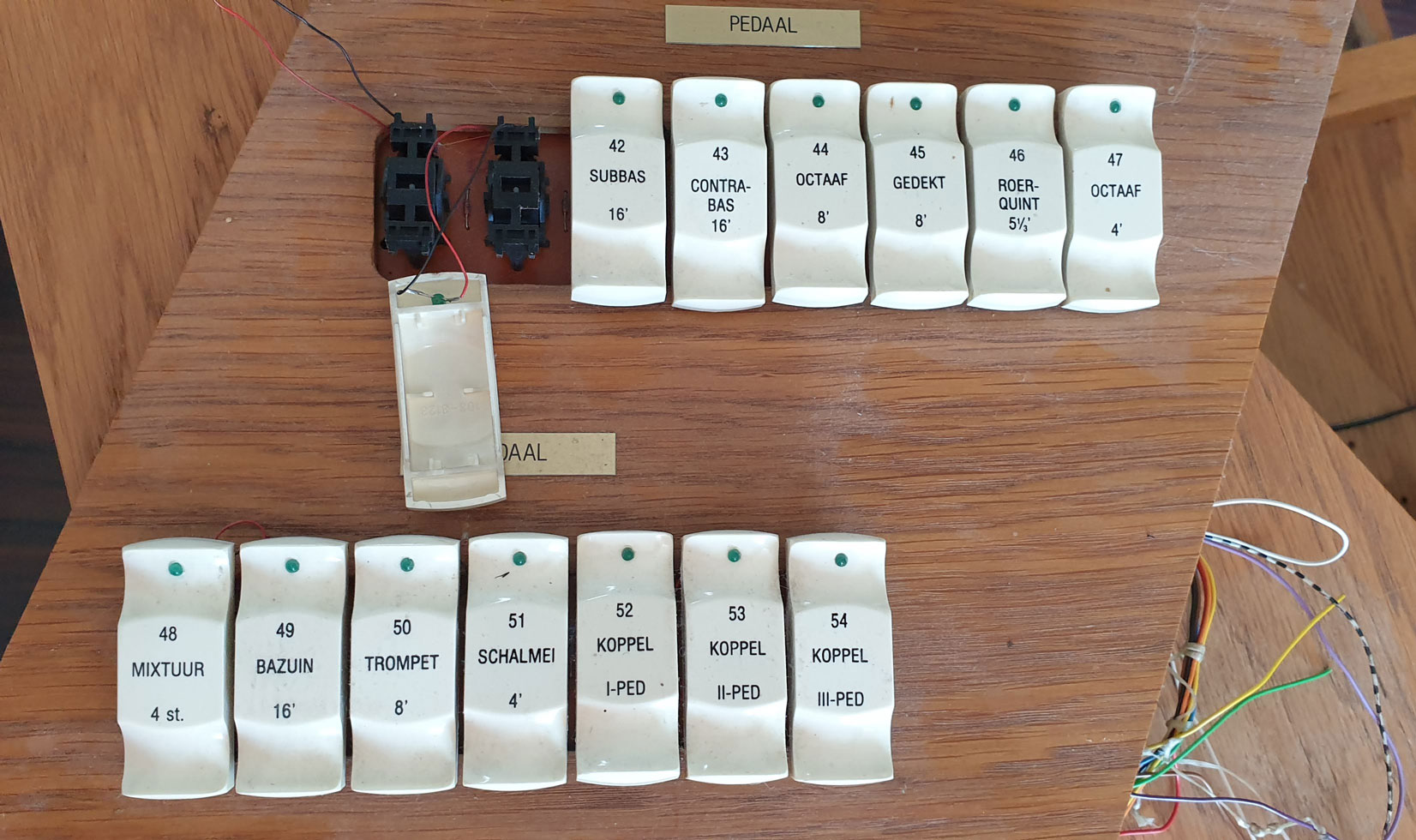

Stops

Stops in 8×8 matrix

And green LEDs

•

•

•
